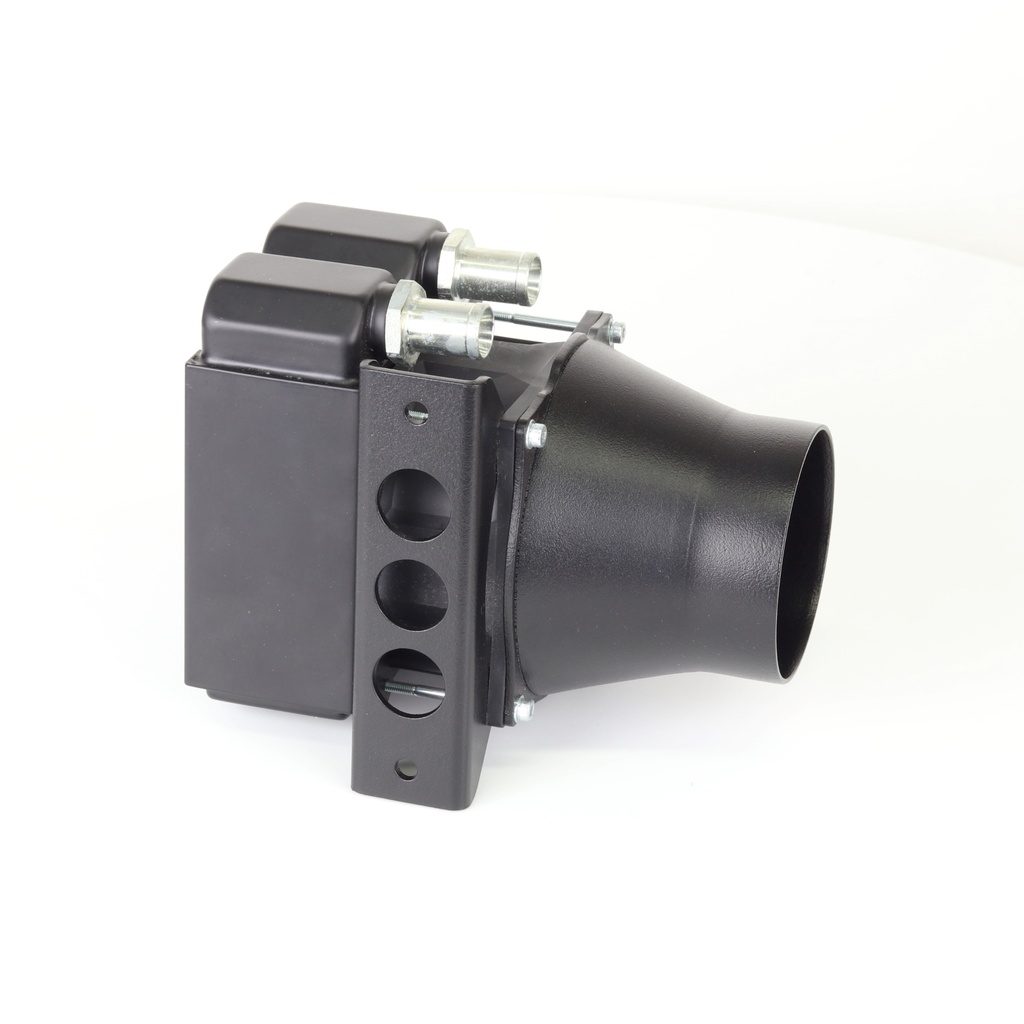

2.2KW MICRO HEATER 12V
water based heater available making it perfect for
applications where weight or space is the number one priority.
Internal Reference:
HEAMH1
The heater uses a specially designed copper & brass heater core which utilises micro tube technology, a high fin density and thin tube walls offer exceptional heat exchanger performance in a very small package. A lightweight axial fan is used to draw air through the heater core and expel it through the single 2.5” outlet nozzle, these types of fans are at minimum 50% lighter and use 25% of the power over traditional centrifugal blowers. The Micro Heater is ideal for use in vehicles for defrosting windscreens, or as a backup heating device for vehicles if you already have a heated windscreen. These work perfectly with one or two of our universal defrost vents feeding the windscreen.
Specification | Metric | Imperial & Other |
Heat Output | 2.2 kw | 7500 BTU |
Airflow | 136 m3/hr | 80 cfm |
Weight | 0.59 kg | 1.3 lbs |
Hose Size | Ø 13mm | Ø 1/2” |
Air Nozzle Size | 1x Ø 63.5mm | 1x Ø 2.5” |
Noise Level | 54 dB (Max Fan Speed) | - |
Voltage | 12v | |
Current Continuous / Startup | 0.7a / 1.4a | |
Fan Speeds | Single Speed | |
Enclosure Construction | Aluminium Bracket & Nozzle with Black Powdercoat Finish | |
Heater Core Design | Copper & Brass Core with Copper Fins |
