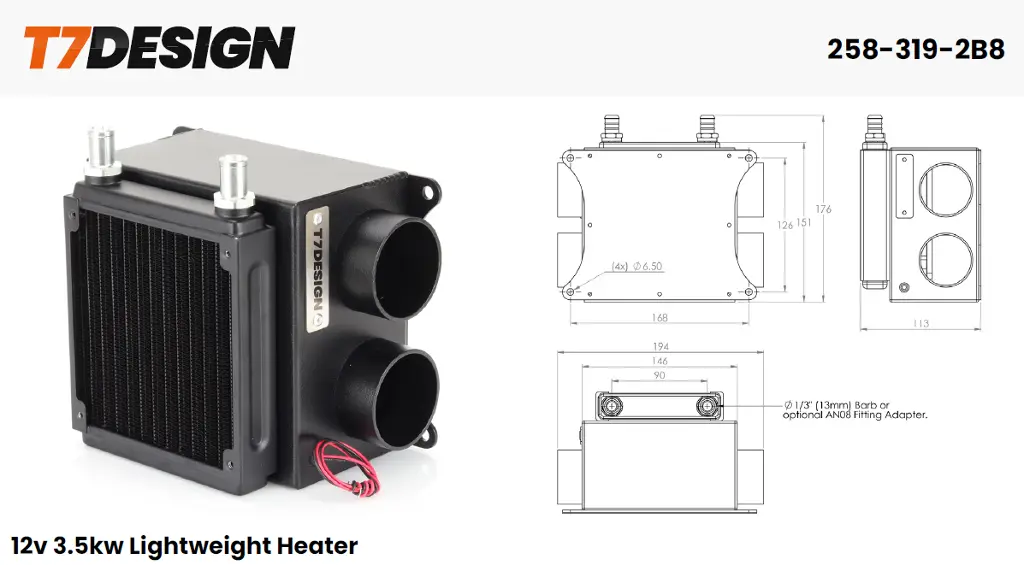

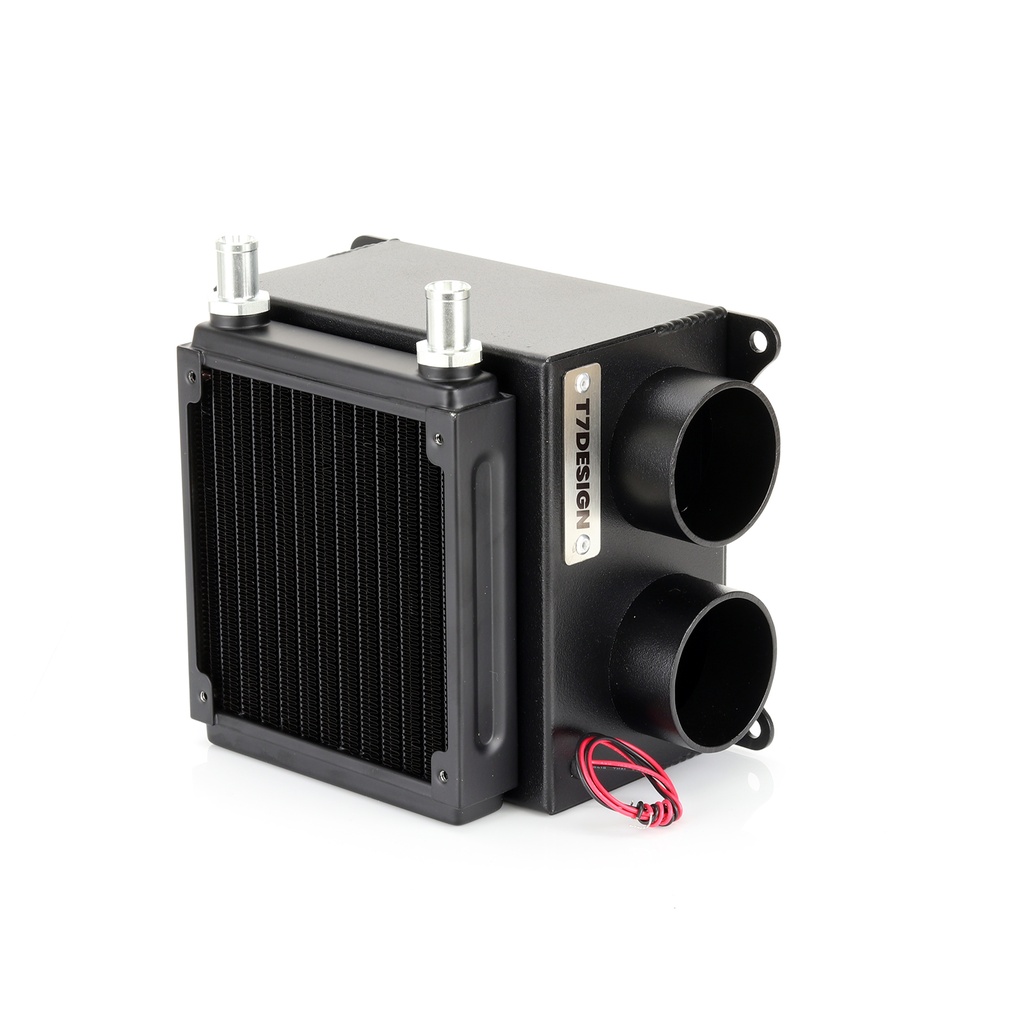

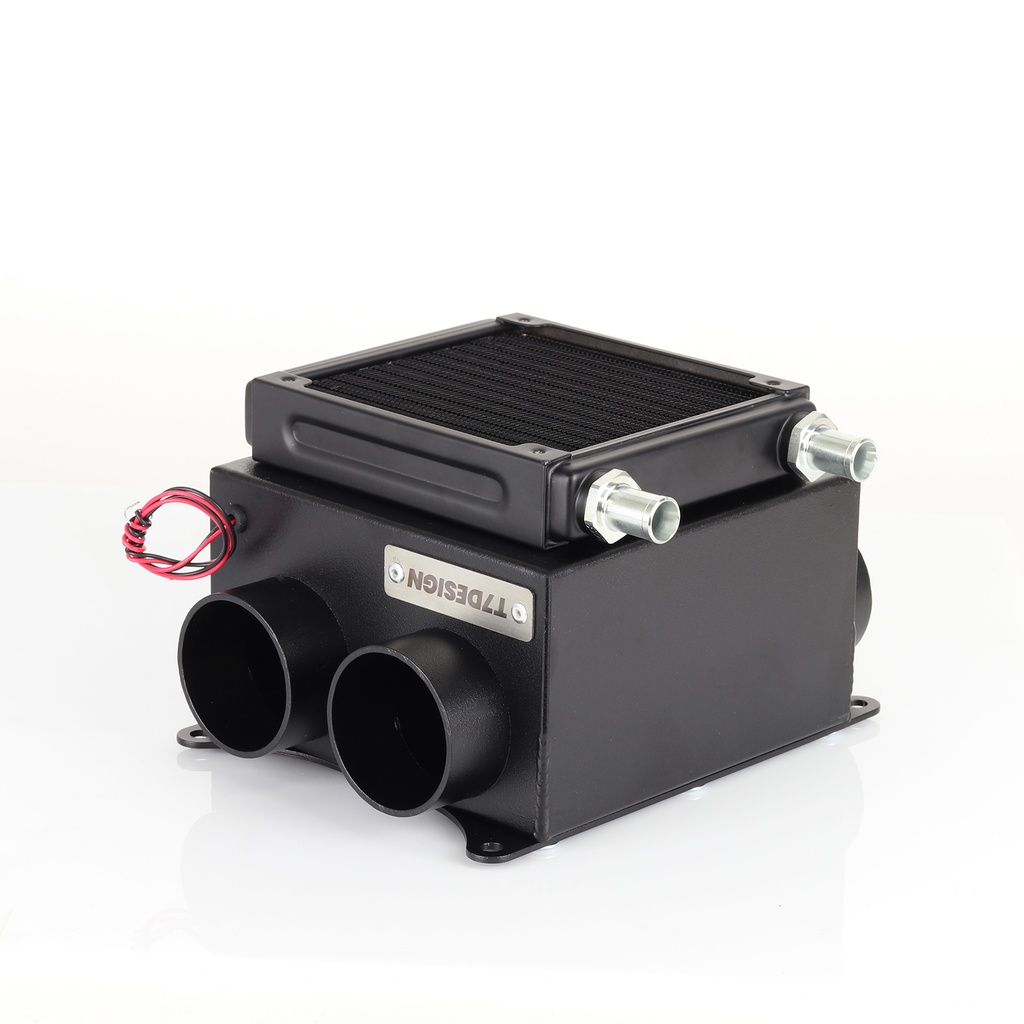

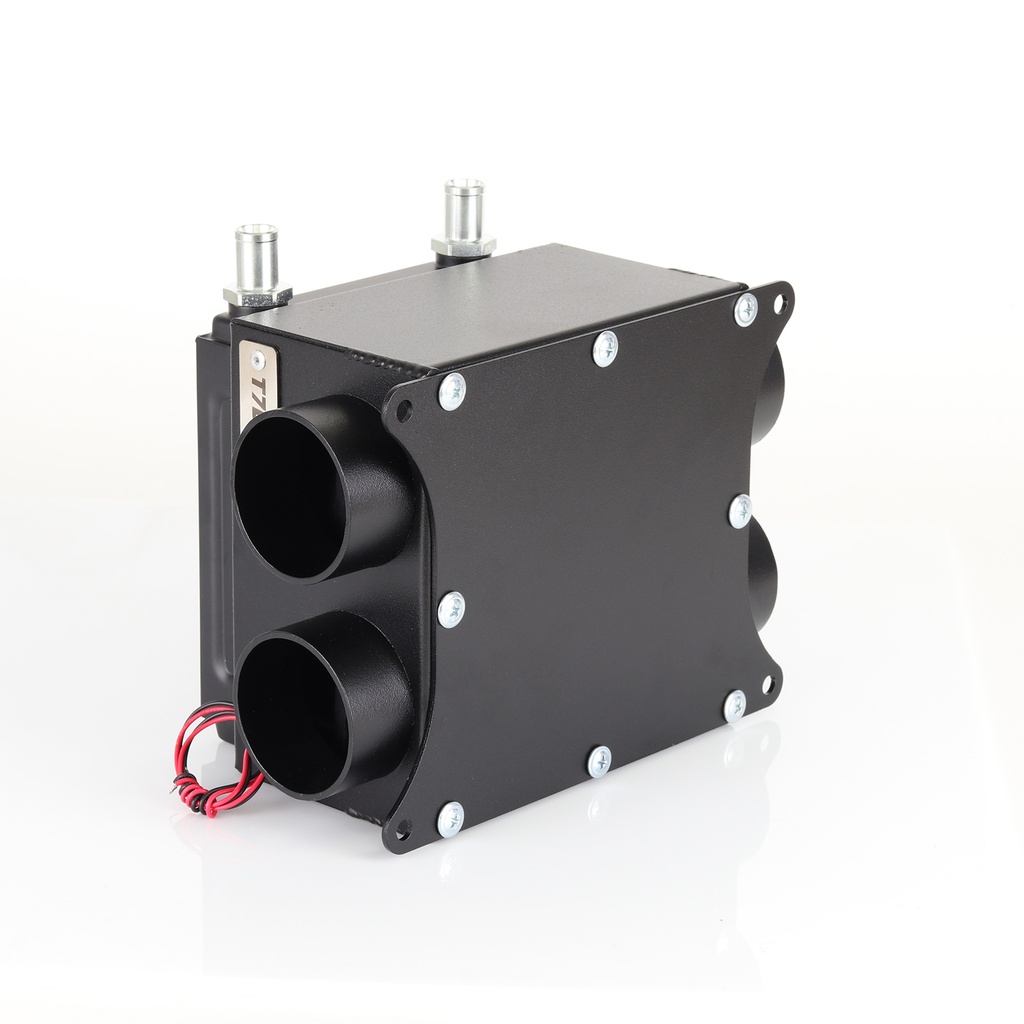

3.5KW LIGHTWEIGHT HEATER 12V
lightest hot water based heater after the 2.2kw Micro Heater,
sacrificing a little weight for performance this unit can be used
as a more powerful defrost heater and can also provide more
cabin heat.
Internal Reference:
HEALH1
The heater uses a specially designed copper & brass heater core offering excellent heat transfer capabilities for its size, this is accomplished using a high flow core design, high fin density and ultra-thin wall tube. A lightweight and efficient axial fan is used to draw air through the heater core and expel it through 4x 51mm outlet nozzles. The Axial fans are at minimum 50% lighter and use 25% of the power over traditional centrifugal blowers.
The heater comes with 1/2” hose fittings as standard, however AN08 hose adapters are available as an optional extra to allow the fitment of braided hose if regulations do not allow standard rubber heater hose to be run in the interior of the vehicle.
Specification | Metric | Imperial & Other |
Heat Output | 3.5 kw | 11,900 BTU |
Airflow | 322 m3/hr | 190 cfm |
Weight | 1.15 kg | 2.53 lbs |
Hose Size | Ø 13mm | Ø 1/2” |
Air Nozzle Size | 4x Ø 51mm | 4x Ø 2” |
Noise Level | 60 dB (Max Fan Speed) | - |
Voltage | 12v | |
Current Continuous / Startup | 2a / 3a | |
Fan Speeds | Single Speed | |
Enclosure Construction | Aluminium Bracket & Nozzle with Black Powdercoat Finish | |
Heater Core Design | Copper & Brass Core with Copper Fins |
